First Choice Global Offers the following 3M LV Resin Splicing Kits which are suitable for low voltage jointing of cables with XLPE, EPR, PVC or PILC insulation, 1.5-400sqmm, 600/1000v up to 3.3kV.
| 3M LOW VOLTAGE SPLICING KITS WITH APPLICABLE CABLE SIZES | |||
| S.N | PRODUCT NAME | CABLE CONDUCTOR SIZE | CABLE OUTER DIAMETER |
| 1 | 82 A1 splicing Kit | 2.5 – 4mm2 | 7 – 16mm |
| 2 | 82 A2 splicing Kit | 6 -16mm2 | 14 – 28mm |
| 3 | 91 A1 splicing Kit | 4-10mm2 | 8 – 28mm |
| 4 | 91 A2 splicing Kit | 16 – 25mm2 | 14 – 32mm |
| 5 | 91 A3 splicing Kit | 35 – 50mm2 | 23 – 39mm |
| 6 | 91 A4 splicing Kit | 70mm2 | 28 – 51mm |
| 7 | 91 A4.5 splicing Kit | 95mm2 | 30 – 55mm |
| 8 | 91 A5 splicing Kit | 120 – 150mm2 | 45 – 70mm |
| 9 | 91 A6 splicing Kit | 185 – 240mm2 | 48 – 86mm |

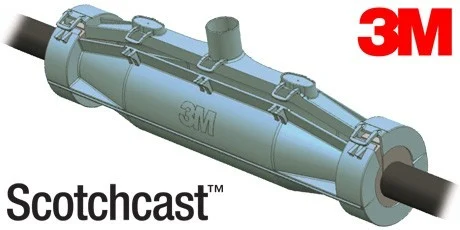

3M Resin type LV Splicing kits (cable joints) suit the operating requirements for the jointing of LV
3M Resin type LV Splicing kits (cable joints) suit the operating requirements for the jointing of LV cables in industrial, marine and offshore, oil and gas, substation and utilities sectors where high quality and performance joints ensure the continued distribution of power supply to critical circuits.
We offer Special Resin LV Cable Joints uniquely modified for oil, petrochemical, gas, mines, telecoms, rail and industrial cables are available – suitable for direct burial (underground) or onto cable containment. Some are Straight/Inline, Branch (T or Y) and Transition.
Contact First Choice Global to discuss your application – we can provide expert technical support and specification advice to ensure the correct supply of electrical LV cable joints to suit your requirement.
